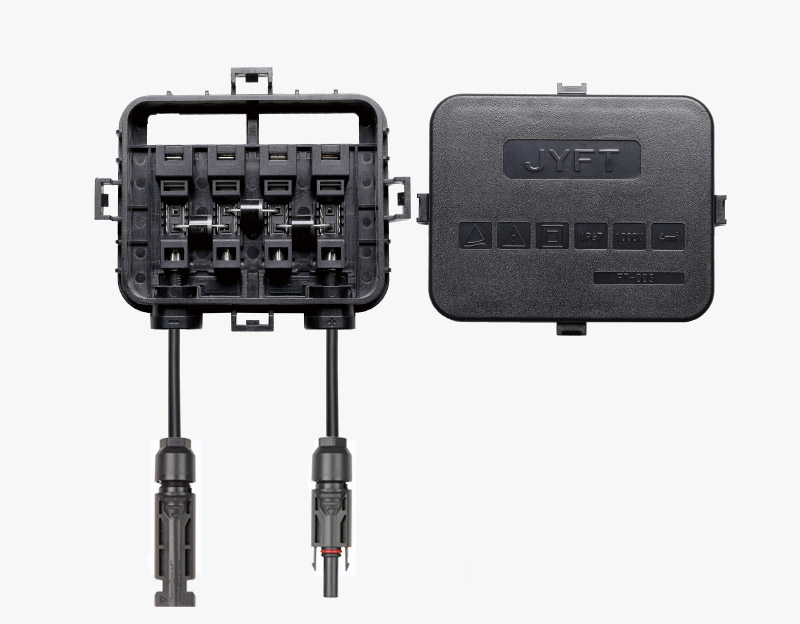

• Solar Junction Box(1500V) 4Rail,3Diodes(FT-G006B)

    Product Details



    ● With the capacity of age and UV-resistance.

    ● The PV-Junction box can in the atrocious weather.

    ● Found in outdoor use under harsh environmental conditions required.

    ● Crimp connection is used for the solar cable.

    ● Welding connections is used for ribbon band.

    ● More convenient installation and maintenance.





    Number of terminals

    4

    Number of diodes

    3

    Cable Spec

    4mm²

    Connection method

    Soldering

    Weight

    240(g)






    Rated current

    15A

    Rated Voltage

    1500V DC

    Operating Temperature

    -40℃ to 85℃

    Protection Degree

    IP67

    Protection Class

    Class II
